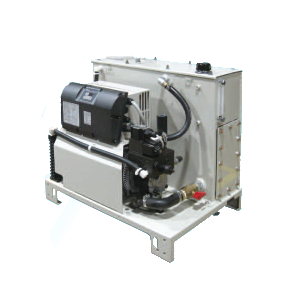

This super unit incorporates the multi-stage pressure/flow rate control system as well as the functions of conventional hydraulic units, which results in use of a reduced number of valves.
The high-efficiency IPM motor drive system that utilise the Daikin original air conditioning motor and inverter technologies provides a high energy-saving ratio of up to 50%
Four or sixteen pressure (P) - flow rate (Q) setting patterns are available for cylinder control
Reduced shock during flow rate or pressure changes
Low noise level of 60dB (A) and the noise level of 73dB (A) or less even in full-operation areas.
Multi-stage P-Q remote control by communication (Function: -C)
The Super Unit and main machine can be remotely controlled with the same panel. This function eliminates complicated individual operations and installation space limitations.
|Maximum flow rate (L/min)||15.2|
|Maximum operating pressure (MPa)||7.0|
|Operating flow rate adjustment range (L/min)||2.5~15.2|
|Operating pressure adjustment range (MPa)||1.5~7.0|
|Power Supply||3-phase, 200V/50Hz, 200V/60Hz, 200V/60Hz|
|Rated Current (A)||11.5 (200V/50Hz), 11.3 (200V/60Hz), 10.6 (220/60Hz)|
|Main Power Supply Breaker Setting||15A|
|External Input Signal||5 Channels|
|External Output Signal||2 Digital, 1 Contact|
|Hydraulic Oil||Dedicated mineral hydraulic oil/wear-resistant hydraulic oil|
|Viscosity Grade||ISO VG32 to 68|
|Viscosity Range||15 to 400 mm2/s|
|Pollution Degree||NAS10 or lower|
|Operating Hydraulic Oil Temperature||0-60°C (recommended range 15-50°C)|
|Operating Ambient Temperature||0-40°C|
|Storage Ambient Temperature||-20~60°C|
|Operating Ambient Humidity||85% RH Max (No Condensation)|
