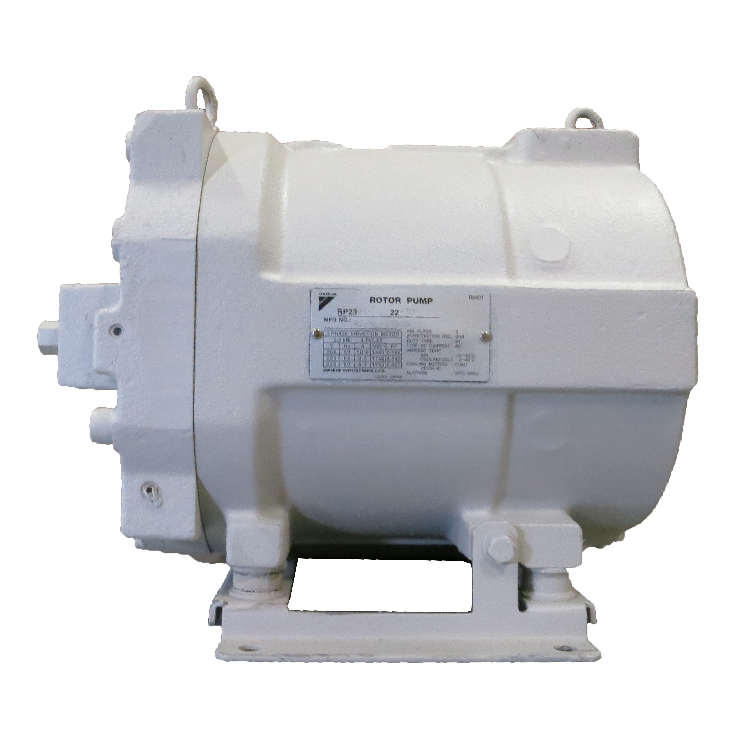

RP23A1-37-30 Daikin Pump and Motor Assembly

Delivery: Options Available

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: RP23A1-37-30

This pump and motor assembly is fitted to a range of the NDR hydraulic units.

Model No RP
Pump Capacity 23 (24.4cm3/rev)
Control Method A (Pressure compensator control)
Pressure Adjusting Range 1 (1.5-7 MPa {15-70 kgf/cm2})
Motor Output 22 (2.2kW 4P)
Voltage Specification No Designation (AC200V 50/60Hz, AC220V 60Hz)
Design Number 30
Pump Installation No Designation (Foot Support Mount)
