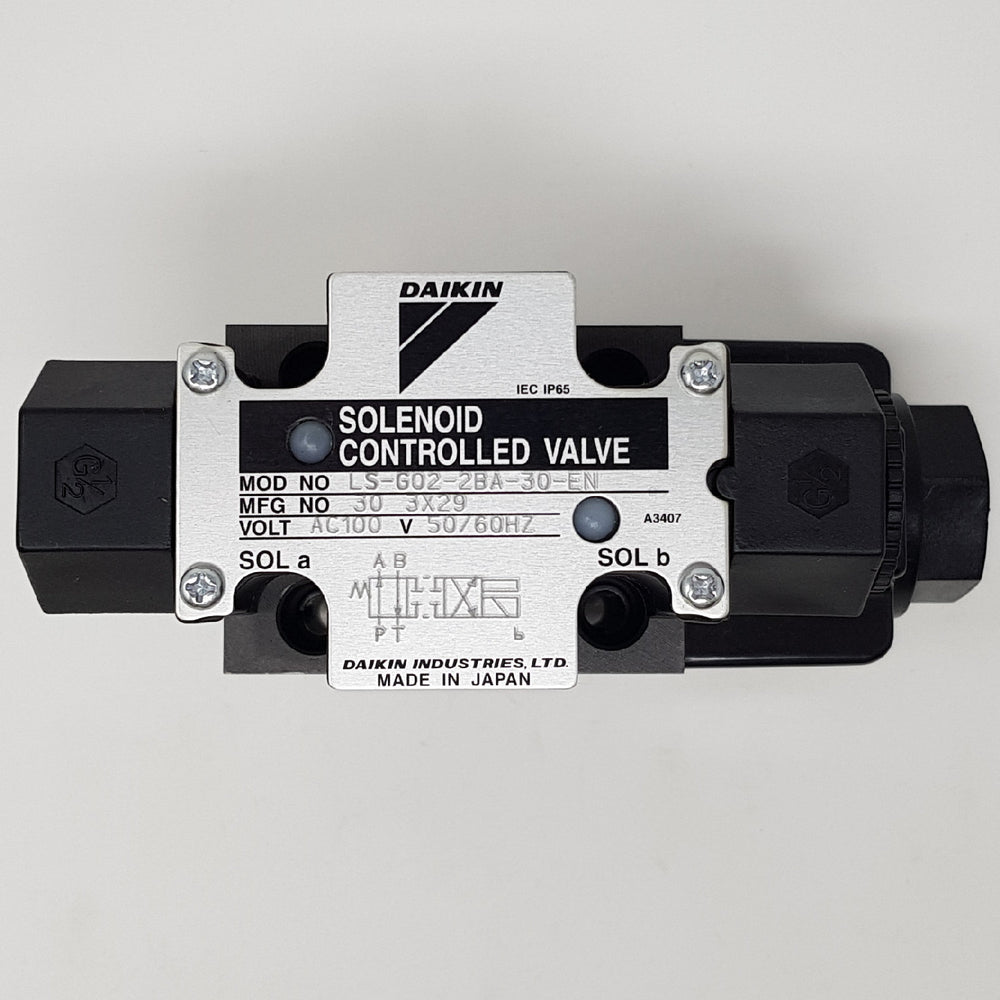

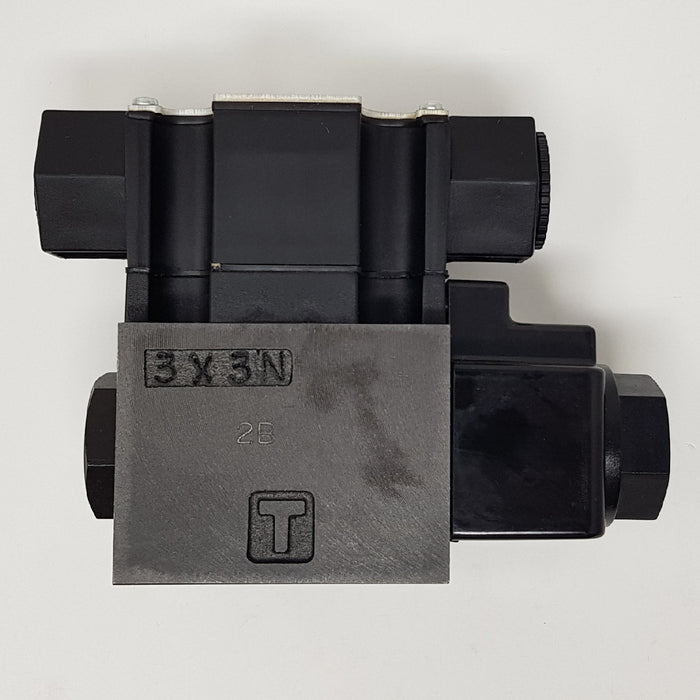

This Daikin low watt solenoid operated valve adopts a low watt coil (DC 5W, AC 12W) and you can drive directly by means of programmable sequence controller due to the low current characteristics.
The maximum operating pressure is 7MPa (kgf/cm2) and the maximum flow rate is 30 litres per minute.
|Hydraulic Connections||G (Gasket attached type)|
|Nominal Diameter||02 (1/4)|
|Spool Method||20B (Spring off-set type with SOLb)|
|Voltage||A (AC100V 50Hz AC110V 60Hz)|
|Electrical Connections||No Mark (terminal box type)|
