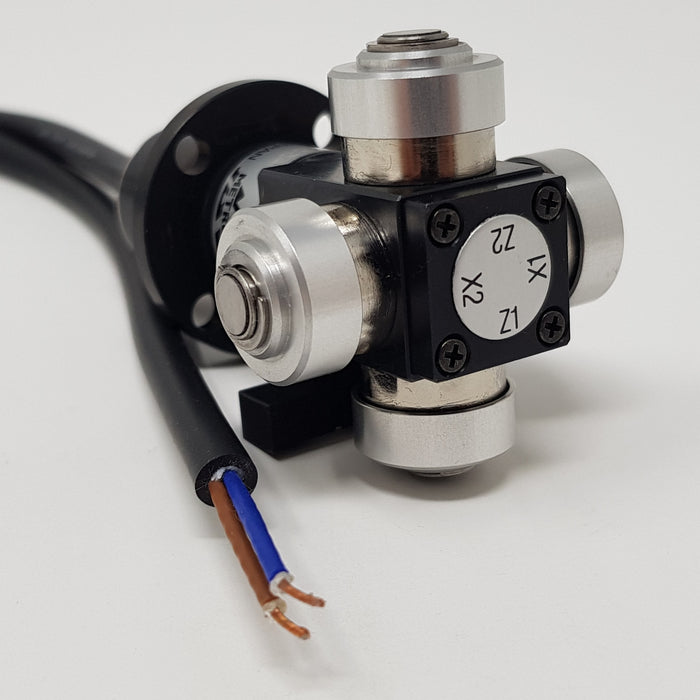

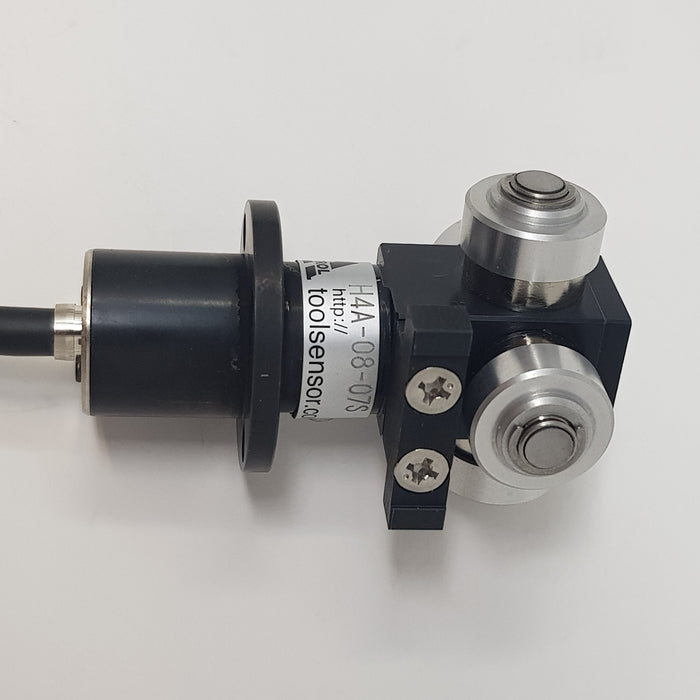

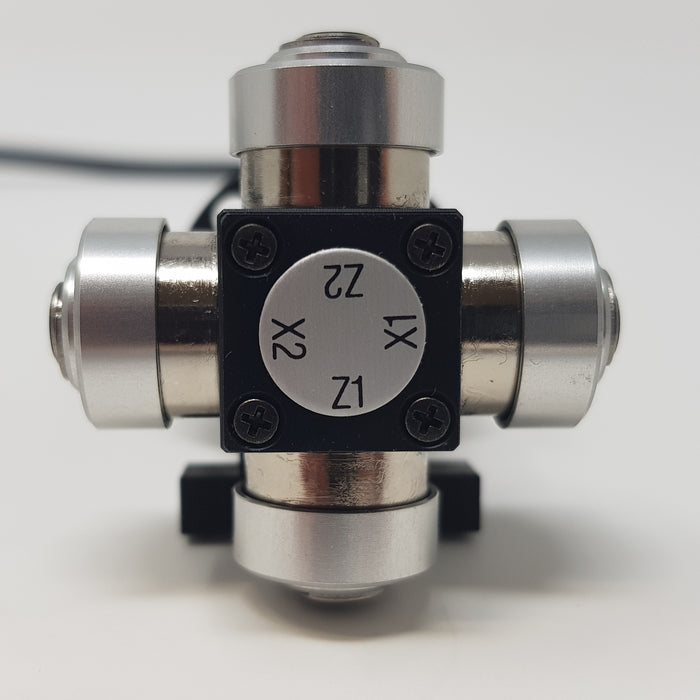

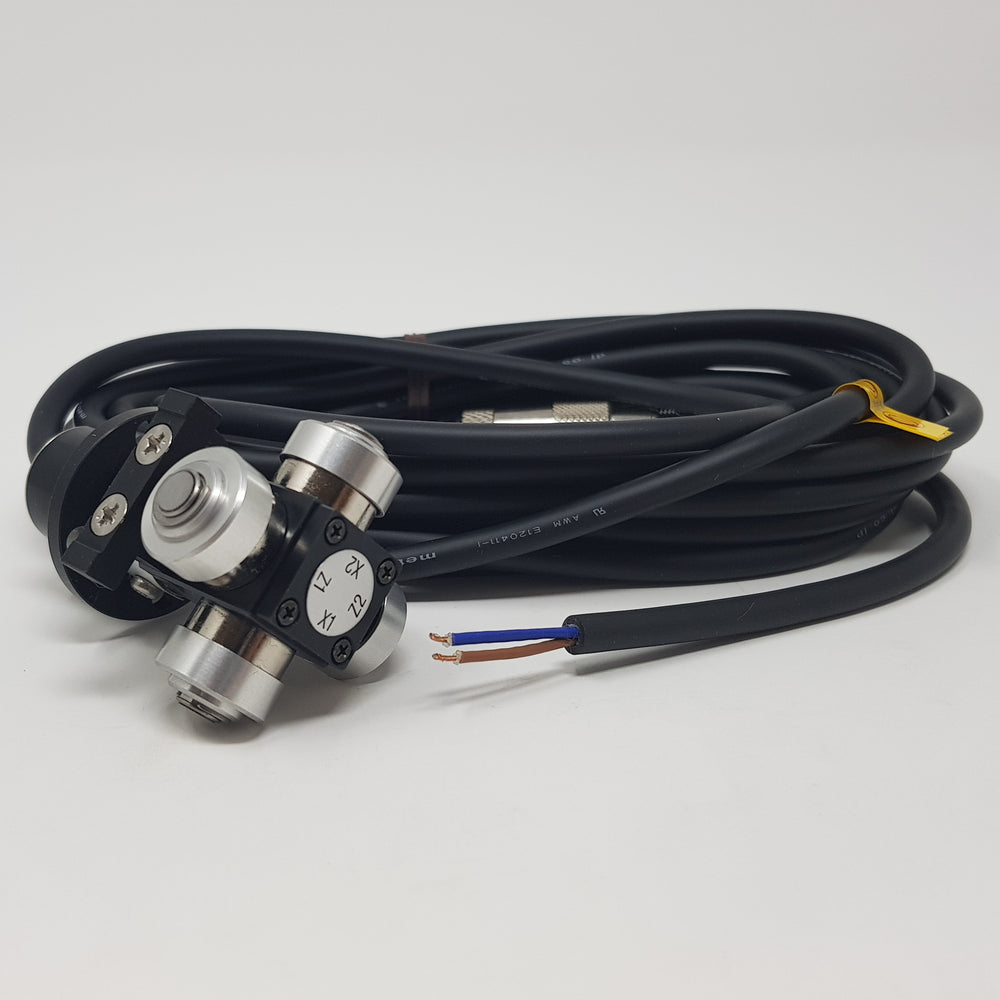

H4A-08-07S Metrol Tool Setter Probe

In Stock

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: H4A-08-07S

This Metrol tool setter probe is used for precise blade positioning and detection of the wear and breakage. The touch sensors are arranged and directly linked in each direction.

Output Mode Normally Closed
Pretravel 0mm
Stroke 2mm
Repeatability 0.001* (recommended operating speed of 50-200mm/min)
Contact Life Time 3 million
Protective Structure IP67
Contact Force 2N
Contact Materia Tungsten Carbide
Surface Finish Grinding 4S
Contact Rating DC5V-DC24V
Steady Current 10mA or less
Rush Current 20mA or less
