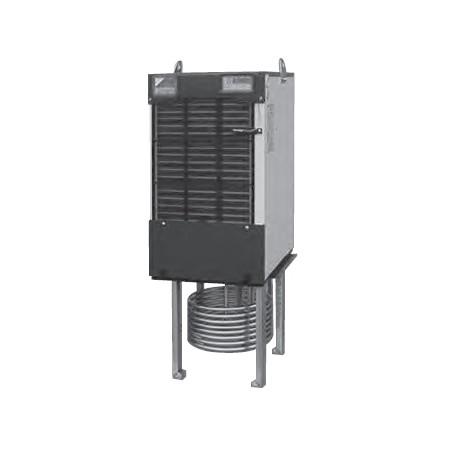

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this immersion type cooling unit are water-soluble cutting and grinding liquids, cutting and grinding oil, lubricating oil, hydraulic fluid and industrial water.
The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.
Cooling Capacity (kW) | 4.2/4.5 |
Power Supply | AC 3-phase 200/220V 50/60Hz |
Height | 1320mm |
Width | 360mm |
Depth | 440mm |
Compressor | Equivalent to 1.1kW |
Refrigerant | R410A |
Noise | 62dB(A) |
Weight (kg) | 53 |
Downloads
Instruction Manual
Brochure
Compressor
SB-1936172-1 Daikin 8 Series Expansion Valve Body
Daikin
Expansion valve body for the Daikin cooling units
SB-3PB39152-2 Daikin Vibration Mount Isolator (set of 3)
Daikin
These Daikin compressor vibration mount isolators are fitted underneath the compressor on a wide range of the 8 and 9 series cooling units.
SB-4P012568-2 Daikin 8 Series Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-3PD03148-1 Daikin 8 Series Compressor Terminal Cover
Daikin
This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.
Pump and Motors
SB-22300197-01 Daikin Agitator Motor
Daikin
Agitator motor for the Daikin 'AKZ 8 series' cooling units.
SB-1915112-1 Daikin 8 Series Fan Blade
Daikin
This Daikin fan blade is fitted on a range of 8 series cooling units
SB-22401175-01 Daikin Fan Motor
Daikin
This Daikin fan motor is fitted on a wide range of the 8 series cooling units.
Control Boards
SB-PP00365-308S Daikin Main Control Board
Daikin
Main control board for the AKZJ458 oil cooling unit
SB-1936175-1 Daikin Control Panel Assembly
Daikin
This Daikin control panel assembly is fitted to the majority of 8 series cooling units.
Thermistors
SB-4PY05313-2 Liquid Thermistor (Th-4)
Daikin
This Daikin liquid thermistor is fitted to a range of 8 series cooling units
SB-Y4453008-1 Daikin Air (Room) Temperature Thermistor (Th-3)
Daikin
This Daikin air (room) temperature thermistor is fitted to a range of 8 series cooling units
SB-Y4453092-1 Daikin Thermistor Assembly (Th-6,7,8)
Daikin
This Daikin thermistor assembly is fitted to a range of 8 series cooling units
General
SB-1936142-3 Daikin Filter Mesh
Daikin
Filter mesh for the Daikin '8 series' and '9 series' cooling units
