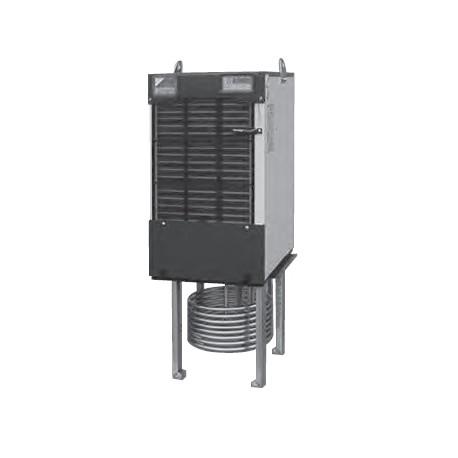

AKZJ358-BC Daikin Immersion Cooling Unit

Delivery: Options Available

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: AKZJ358-BC

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".



The usable oils for this immersion type cooling unit are water-soluble cutting and grinding liquids, cutting and grinding oil, lubricating oil, hydraulic fluid and industrial water.



The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.



Cooling Capacity (kW) 3.2/3.5
Power Supply AC 3-phase 200/220V 50/60Hz
Height 1120mm
Width 360mm
Depth 440mm
Compressor Equivalent to 0.75kW
Refrigerant R410A
Noise 62dB(A)
Weight (kg) 44

Downloads

Compressor

SB-1936172-1 Daikin 8 Series Expansion Valve Body

SB-1936172-1 Daikin 8 Series Expansion Valve Body

Daikin

Expansion valve body for the Daikin cooling units

SB-1936195-1 Daikin Expansion Valve Coil

SB-1936195-1 Daikin Expansion Valve Coil

Daikin

This Daikin expansion valve coil is fitted on a range of 8 series cooling units

SB-1YC23HXD Daikin Compressor

SB-1YC23HXD Daikin Compressor

Daikin

This compressor is fitted on on the AKZ148, AKZ328, AKZJ188 and AKZJ358 cooling units.

SB-3PB39152-2 Daikin Vibration Mount Isolator (set of 3)

SB-3PB39152-2 Daikin Vibration Mount Isolator (set of 3)

Daikin

These Daikin compressor vibration mount isolators are fitted underneath the compressor on a wide range of the 8 and 9 series cooling units.

SB-4P012568-2 Daikin 8 Series Expansion Valve Refrigerant Filter

SB-4P012568-2 Daikin 8 Series Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

SB-3PD03148-1 Daikin 8 Series Compressor Terminal Cover

SB-3PD03148-1 Daikin 8 Series Compressor Terminal Cover

Daikin

This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.

Pump and Motors

SB-22300197-01 Daikin Agitator Motor

Daikin

Agitator motor for the Daikin 'AKZ 8 series' cooling units.

SB-1915112-1 Daikin 8 Series Fan Blade

SB-1915112-1 Daikin 8 Series Fan Blade

Daikin

This Daikin fan blade is fitted on a range of 8 series cooling units

SB-Y4452810-2 Daikin Agitator Plate

Daikin

Agitator plate for the Daikin '8 series' cooling units

SB-22401175-01 Daikin Fan Motor

SB-22401175-01 Daikin Fan Motor

Daikin

This Daikin fan motor is fitted on a wide range of the 8 series cooling units.

Control Boards

SB-PP00365-283S Daikin Main Control Board

SB-PP00365-283S Daikin Main Control Board

Daikin

Main control board for the AKZJ358 oil cooling unit

SB-1936175-1 Daikin Control Panel Assembly

SB-1936175-1 Daikin Control Panel Assembly

Daikin

This Daikin control panel assembly is fitted to the majority of 8 series cooling units.

Thermistors

SB-4PY05313-2 Liquid Thermistor (Th-4)

SB-4PY05313-2 Liquid Thermistor (Th-4)

Daikin

This Daikin liquid thermistor is fitted to a range of 8 series cooling units

SB-Y4453008-1 Daikin Air (Room) Temperature Thermistor (Th-3)

SB-Y4453008-1 Daikin Air (Room) Temperature Thermistor (Th-3)

Daikin

This Daikin air (room) temperature thermistor is fitted to a range of 8 series cooling units

SB-Y4453092-1 Daikin Thermistor Assembly (Th-6,7,8)

SB-Y4453092-1 Daikin Thermistor Assembly (Th-6,7,8)

Daikin

This Daikin thermistor assembly is fitted to a range of 8 series cooling units

General

SB-1936180-1 Daikin Condenser

Daikin

Condenser for the Daikin '8 Series' cooling units

SB-1936142-2 Daikin Series 8 Air Filter Mesh

SB-1936142-2 Daikin Series 8 Air Filter Mesh

Daikin

This Daikin filter mesh is fitted to the AKZ328 and AKZJ358 cooling units

Special

SB-1936010-4 Thermostat

Daikin

Thermostat for the Daikin 'AKZ8' series cooling units

SB-1936204-1 Daikin Pressure Switch

Daikin

Pressure Switch for the Daikin '8 series' cooling units.

SB-HP31360-1 8 Series Breaker

Daikin

Breaker for the Daikin 'AKZ8' series cooling units
