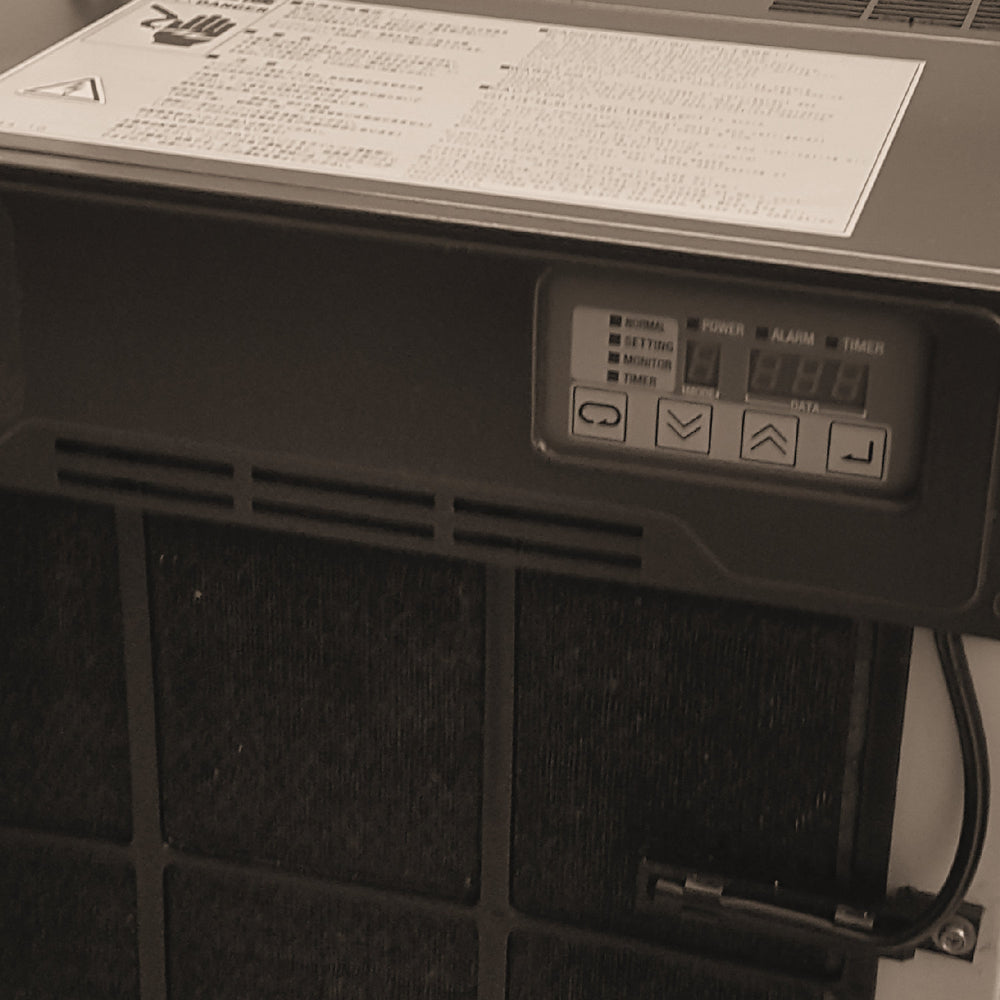

AKZG568-BCH-D256B Daikin Oil Cooling Unit

Delivery: Options Available

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: AKZG568-BCH-D256B

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".



The usable oils for this coolant type cooling unit are lubrication oil, hydraulic oil, cutting oil, (water based) coolant, grinding oil (Use clean fluid that can pass through filter equipment with a screen mesh of 40 or greater).



The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.



This particular model has been designed specially for a machine tool manufacturer.



Compressor

SB-1936172-1 Daikin 8 Series Expansion Valve Body

SB-1936172-1 Daikin 8 Series Expansion Valve Body

Daikin

Expansion valve body for the Daikin cooling units

SB-1936195-2 Daikin Expansion Valve Coil

Daikin

Expansion valve coil for the Daikin cooling units.

SB-1YC32AXD Daikin Compressor

SB-1YC32AXD Daikin Compressor

Daikin

Compressor for the Daikin '8 Series' cooling units

SB-3PB39152-2 Daikin Vibration Mount Isolator (set of 3)

SB-3PB39152-2 Daikin Vibration Mount Isolator (set of 3)

Daikin

These Daikin compressor vibration mount isolators are fitted underneath the compressor on a wide range of the 8 and 9 series cooling units.

SB-4P012568-2 Daikin 8 Series Expansion Valve Refrigerant Filter

SB-4P012568-2 Daikin 8 Series Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

SB-3PD03148-1 Daikin 8 Series Compressor Terminal Cover

SB-3PD03148-1 Daikin 8 Series Compressor Terminal Cover

Daikin

This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.

Pump and Motors

SB-22300198-01 Daikin Agitator Motor

Daikin

Agitator motor for the Daikin 'AKZ 8 series' cooling units.

SB-R3766283 Daikin Fan Blade

Daikin

Fan blade for the Daikin '8 series' cooling units

SB-Y4452810-2 Daikin Agitator Plate

Daikin

Agitator plate for the Daikin '8 series' cooling units

SB-1936073-1 Daikin Fan Motor

SB-1936073-1 Daikin Fan Motor

Daikin

This Daikin fan motor is fitted on a wide range of the 8 series cooling units.

Control Boards

SB-1936175-1 Daikin Control Panel Assembly

SB-1936175-1 Daikin Control Panel Assembly

Daikin

This Daikin control panel assembly is fitted to the majority of 8 series cooling units.

SB-Y4252598-1 Daikin Inverter Board

SB-Y4252598-1 Daikin Inverter Board

Daikin

Inverter board for the Daikin '8 series' cooling units.

SB-PP00365-572S Daikin Main Control Board

SB-PP00365-572S Daikin Main Control Board

Daikin

This Daikin main control board is fitted to the 8 series cooling units.

Thermistors

AKZ8-OP-A5 Daikin Attached Machine Body Thermistor (Th-5)

AKZ8-OP-A5 Daikin Attached Machine Body Thermistor (Th-5)

Daikin

Attached machine body thermistor for the Daikin '8 series' cooling units

AKZ8-OP-K5 Daikin Embedded Attached Machine Body Thermistor (Th-5)

AKZ8-OP-K5 Daikin Embedded Attached Machine Body Thermistor (Th-5)

Daikin

Embedded machine body thermistor for the Daikin '8 series' cooling units

SB-Y4353007-7 Liquid Outlet Thermistor (Th-2)

Daikin

Liquid outlet thermistor (Th-2) for the Daikin '8 series' cooling units

SB-Y4353007-8 Liquid Inlet Thermistor (Th-4)

Daikin

Liquid inlet thermistor for the Daikin '8 series' cooling units

SB-Y4453121-1 Daikin 8 Series Air (Room) Temperature Thermistor (Th-3)

SB-Y4453121-1 Daikin 8 Series Air (Room) Temperature Thermistor (Th-3)

Daikin

Air (Room) temperature (Th-3) thermistor for the '8 Series' cooling units

SB-Y4453200-1 Daikin Thermistor Assembly (Th-6,7,8)

SB-Y4453200-1 Daikin Thermistor Assembly (Th-6,7,8)

Daikin

This Daikin thermistor assembly is fitted to a range of 8 series cooling units

General

SB-Y4252547-1 Daikin Condenser

Daikin

Condenser for the Daikin '8 Series' cooling units

SB-Y4453074-1 Daikin Filter Mesh

Daikin

Filter mesh for the Daikin '8 series' and '9 series' cooling units

Special

SB-1936204-1 Daikin Pressure Switch

Daikin

Pressure Switch for the Daikin '8 series' cooling units.

SB-22301781-01 Daikin 8 Series Thermostat

Daikin

Thermostat for the Daikin 'AKZ8' series cooling units

SB-HP31325-03 Daikin Pressure Switch

Daikin

Pressure Switch for the Daikin 'AKZG358 series' cooling units.

SB-HP31360-2 8 Series Breaker

Daikin

Breaker for the Daikin 'AKZ8' series cooling units
