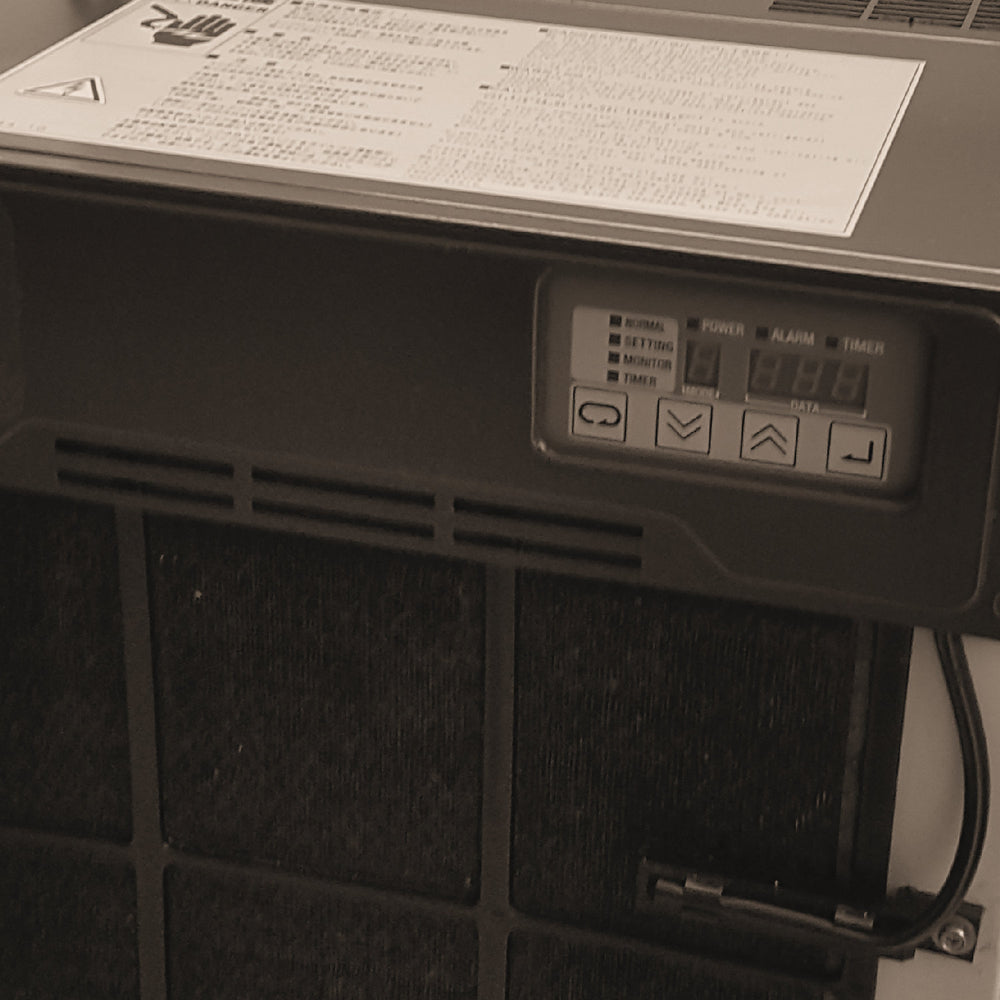

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this coolant type cooling unit are lubrication oil, hydraulic oil, cutting oil, (water based) coolant, grinding oil (Use clean fluid that can pass through filter equipment with a screen mesh of 40 or greater).
The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.
This particular model has been designed specially for a machine tool manufacturer.
Compressor
SB-1936172-1 Daikin 8 Series Expansion Valve Body
Daikin
Expansion valve body for the Daikin cooling units
SB-3PB39152-2 Daikin Vibration Mount Isolator (set of 3)
Daikin
These Daikin compressor vibration mount isolators are fitted underneath the compressor on a wide range of the 8 and 9 series cooling units.
SB-4P012568-2 Daikin 8 Series Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-3PD03148-1 Daikin 8 Series Compressor Terminal Cover
Daikin
This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.
Pump and Motors
SB-22300198-01 Daikin Agitator Motor
Daikin
Agitator motor for the Daikin 'AKZ 8 series' cooling units.
SB-1936073-1 Daikin Fan Motor
Daikin
This Daikin fan motor is fitted on a wide range of the 8 series cooling units.
Control Boards
SB-1936175-1 Daikin Control Panel Assembly
Daikin
This Daikin control panel assembly is fitted to the majority of 8 series cooling units.
SB-PP00365-572S Daikin Main Control Board
Daikin
This Daikin main control board is fitted to the 8 series cooling units.
Thermistors
AKZ8-OP-A10 Daikin Attached Machine Body Thermistor (Th-5)
Daikin
Attached machine body thermistor for the Daikin '8 series' cooling units
AKZ8-OP-K10 Daikin Embedded Attached Machine Body Thermistor (Th-5)
Daikin
Embedded machine body thermistor for the Daikin '8 series' cooling units
SB-Y4353007-7 Liquid Outlet Thermistor (Th-2)
Daikin
Liquid outlet thermistor (Th-2) for the Daikin '8 series' cooling units
SB-Y4353007-8 Liquid Inlet Thermistor (Th-4)
Daikin
Liquid inlet thermistor for the Daikin '8 series' cooling units
SB-Y4453121-1 Daikin 8 Series Air (Room) Temperature Thermistor (Th-3)
Daikin
Air (Room) temperature (Th-3) thermistor for the '8 Series' cooling units
SB-Y4453200-1 Daikin Thermistor Assembly (Th-6,7,8)
Daikin
This Daikin thermistor assembly is fitted to a range of 8 series cooling units
General
SB-Y4453074-1 Daikin Filter Mesh
Daikin
Filter mesh for the Daikin '8 series' and '9 series' cooling units
Special
SB-22301781-01 Daikin 8 Series Thermostat
Daikin
Thermostat for the Daikin 'AKZ8' series cooling units
SB-HP31325-03 Daikin Pressure Switch
Daikin
Pressure Switch for the Daikin 'AKZG358 series' cooling units.
