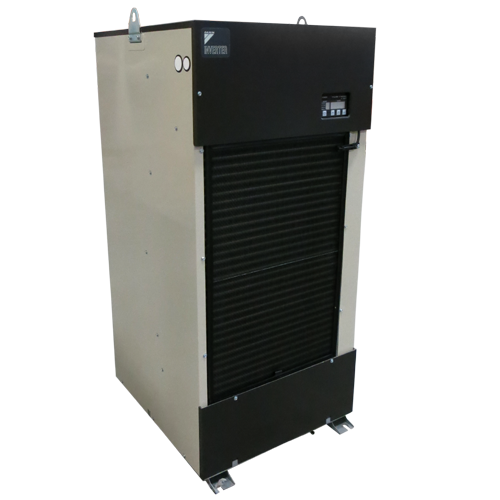

AKZ909-T Daikin Oil Cooling Unit
Delivery: Options Available
For any enquiry or technical support,
please contact us on 0116 478 4200
Part Number: AKZ909-T
High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 1.4~200 (ISO VG2~32).
The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.
The connection piping fitting sizes are as follows:
Oil Inlet: Rc1 1/4
Oil Outlet: Rc1 1/4
Oil Drain: Rc1/4 (Plug Stopper)
| Cooling Capacity (kW) | 8.0/9.0 |
| Power Supply | AC 3-phase 200/220V 50/60Hz |
| Height | 1220mm |
| Width | 560mm |
| Depth | 680mm |
| Compressor | Equivalent to 2.2kW |
| Refrigerant | R410A |
| Pump Discharge (L/min) | 30/36 |
| Noise | 67dB(A) |
| Weight (kg) | 97 |
Downloads
Brochure
Catalogue
Instruction Manual
Related Products

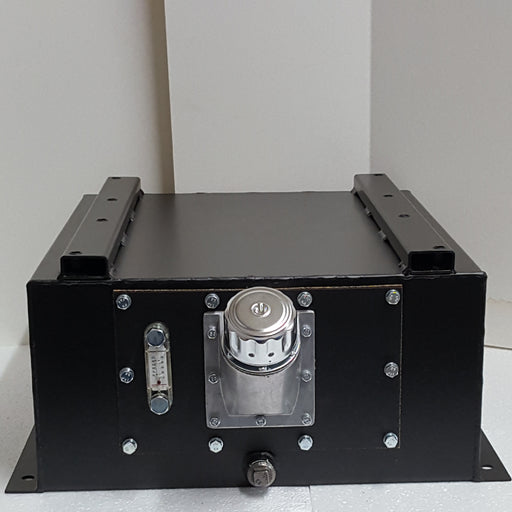

Tank for Daikin AKZ909 Cooling Unit
