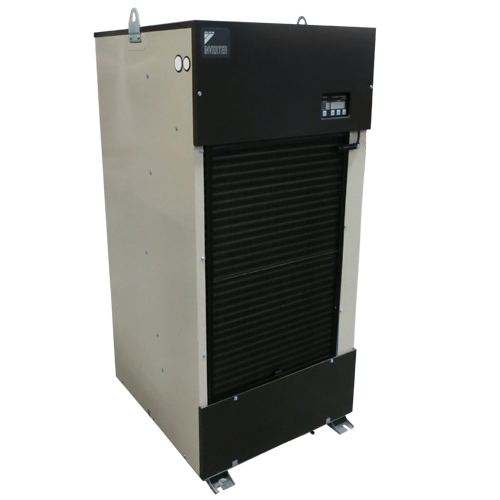

AKZ909-034 Daikin Oil Cooling Unit

Delivery: Options Available

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: AKZ909-034

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".



The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 1.4~200 (ISO VG2~32).



The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.



The connection piping fitting sizes are as follows:

Oil Inlet: Rc1 1/4

Oil Outlet: Rc1 1/4

Oil Drain: Rc1/4 (Plug Stopper)

Cooling Capacity (kW) 8.0/9.0
Power Supply AC 3-phase 200/220V 50/60Hz
Height 1220mm
Width 560mm
Depth 680mm
Compressor Equivalent to 2.2kW
Refrigerant R410A
Pump Discharge (L/min) 30/36
Noise 67dB(A)
Weight (kg) 97

Downloads

Compressor

SB-2YC63FXD Daikin Compressor

Daikin

Compressor for the Daikin '9 Series' cooling units

SB-3PC01011-3 Daikin Vibration Mount Isolator (set of 3)

Daikin

Vibration mount isolators for the compressors on the Daikin '9 series' cooling units.

SB-4P006940-1 Daikin Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

SB-22301854-01 Daikin Expansion Valve Body

SB-22301854-01 Daikin Expansion Valve Body

Daikin

This Daikin expansion valve body is fitted on a range of 9 series cooling units

SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil

SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil

Daikin

Hot gas bypass expansion valve coil for the Daikin '9 series' cooling units.

SBAKZ-016 Daikin Expansion Valve Coil

SBAKZ-016 Daikin Expansion Valve Coil

Daikin

This Daikin expansion valve coil is fitted on a range of 9 series cooling units

SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover

SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover

Daikin

This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.

SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter

SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

SB-1936172-1 Daikin 9 Series Expansion Valve Body

SB-1936172-1 Daikin 9 Series Expansion Valve Body

Daikin

Expansion valve body for the Daikin cooling units

Pump and Motors

SB-2P160641-1 Daikin Fan Blade

Daikin

Fan blade that attaches to the SBAKZ-017 fan motor on the Daikin cooling units.

SBAKZ-020 Daikin Pump and Motor Assembly

Daikin

Pump and motor assembly for the Daikin '9 series' cooling units.

SB-PP03088-01 Daikin Vibration Mount Isolators (set of 4)

Daikin

Vibration mount isolators for the pump and motor assemblies on the Daikin cooling units.

SBAKZ-017 Daikin Fan Motor

SBAKZ-017 Daikin Fan Motor

Daikin

This Daikin fan motor is fitted on a range of the 9 series cooling units.

Control Boards

SB-22201653-01 Daikin Inverter Board

Daikin

Inverter board for the '9 series' cooling units.

SB-22302396-01 Daikin Noise Filter Board

SB-22302396-01 Daikin Noise Filter Board

Daikin

Noise filter board for the Daikin '9 series' cooling units

SB-22302414-01 Daikin Control Panel Assembly

Daikin

Control panel assembly for the '9 series' cooling units.

SB-PP02858-005S Daikin Main Control Board

SB-PP02858-005S Daikin Main Control Board

Daikin

Main control board for the Daikin 'AKZ909' cooling unit.

Thermistors

SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)

SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)

Daikin

This Daikin discharge gas temperature themistor is fitted to a range 9 series cooling units.

SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)

SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)

Daikin

This Daikin expansion valve outlet temperature themistor is fitted to a range 9 series cooling units.

SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)

SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)

Daikin

This Daikin condensation temperature themistor is fitted to a range 9 series cooling units.

SB-22301677-04 Daikin Inlet Oil Temperature Thermistor (Th-4)

SB-22301677-04 Daikin Inlet Oil Temperature Thermistor (Th-4)

Daikin

This Daikin inlet oil temperature themistor is fitted to a range 9 series cooling units.

SB-22301677-05 Daikin Outlet Oil Temperature Thermistor (Th-2)

SB-22301677-05 Daikin Outlet Oil Temperature Thermistor (Th-2)

Daikin

This Daikin outlet oil temperature themistor is fitted to a range 9 series cooling units.

SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)

SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)

Daikin

Air (Room) temperature (Th-3) thermistor for the '9 Series' cooling units

General

SB-22201604-01 Daikin Condenser

Daikin

Condenser for the Daikin '9 series' cooling units.

SB-22302133-03 Daikin Over Current Relay

Daikin

Over current relay for the Daikin '9 series' cooling units

SB-22302771-02 Daikin Evaporator

Daikin

Evaporator for the Daikin '9 series' cooling units.

SB-Y4453074-05 Daikin Filter Mesh

Daikin

Filter mesh for the Daikin '8 series' and '9 series' cooling units

Special

SB-HP20319 Daikin 8 Series Oil Level Gauge

Daikin

Oil level gauge for the Daikin 'AKZ8' series cooling units

SB-HP30995 Daikin 8 Series Air Breather

Daikin

Air breather for the Daikin 'AKZ8' series cooling units

SB-HP20319 Daikin 9 Series Oil Level Gauge

Daikin

Oil level gauge for the Daikin 'AKZ8' series cooling units

SB-HP30995 Daikin 9 Series Air Breather

Daikin

Air breather for the Daikin 'AKZ8' series cooling units
