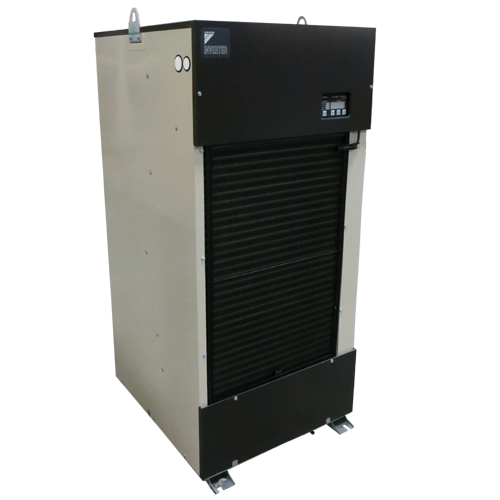

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 1.4~200 (ISO VG2~32).
The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.
The connection piping fitting sizes are as follows:
Oil Inlet: Rc1 1/4
Oil Outlet: Rc1 1/4
Oil Drain: Rc1/4 (Plug Stopper)
Cooling Capacity (kW) | 8.0/9.0 |
Power Supply | AC 3-phase 200/220V 50/60Hz |
Height | 1220mm |
Width | 560mm |
Depth | 680mm |
Compressor | Equivalent to 2.2kW |
Refrigerant | R410A |
Pump Discharge (L/min) | 30/36 |
Noise | 67dB(A) |
Weight (kg) | 97 |
Downloads
Brochure
Catalogue
Instruction Manual
Compressor
SB-3PC01011-3 Daikin Vibration Mount Isolator (set of 3)
Daikin
Vibration mount isolators for the compressors on the Daikin '9 series' cooling units.
SB-4P006940-1 Daikin Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-22301854-01 Daikin Expansion Valve Body
Daikin
This Daikin expansion valve body is fitted on a range of 9 series cooling units
SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil
Daikin
Hot gas bypass expansion valve coil for the Daikin '9 series' cooling units.
SBAKZ-016 Daikin Expansion Valve Coil
Daikin
This Daikin expansion valve coil is fitted on a range of 9 series cooling units
SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover
Daikin
This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.
SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-1936172-1 Daikin 9 Series Expansion Valve Body
Daikin
Expansion valve body for the Daikin cooling units
Pump and Motors
SB-2P160641-1 Daikin Fan Blade
Daikin
Fan blade that attaches to the SBAKZ-017 fan motor on the Daikin cooling units.
SBAKZ-020 Daikin Pump and Motor Assembly
Daikin
Pump and motor assembly for the Daikin '9 series' cooling units.
SB-PP03088-01 Daikin Vibration Mount Isolators (set of 4)
Daikin
Vibration mount isolators for the pump and motor assemblies on the Daikin cooling units.
SBAKZ-017 Daikin Fan Motor
Daikin
This Daikin fan motor is fitted on a range of the 9 series cooling units.
Control Boards
SB-22302396-01 Daikin Noise Filter Board
Daikin
Noise filter board for the Daikin '9 series' cooling units
SB-22302414-01 Daikin Control Panel Assembly
Daikin
Control panel assembly for the '9 series' cooling units.
SB-PP02858-005S Daikin Main Control Board
Daikin
Main control board for the Daikin 'AKZ909' cooling unit.
Thermistors
SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)
Daikin
This Daikin discharge gas temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)
Daikin
This Daikin expansion valve outlet temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)
Daikin
This Daikin condensation temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-04 Daikin Inlet Oil Temperature Thermistor (Th-4)
Daikin
This Daikin inlet oil temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-05 Daikin Outlet Oil Temperature Thermistor (Th-2)
Daikin
This Daikin outlet oil temperature themistor is fitted to a range 9 series cooling units.
SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)
Daikin
Air (Room) temperature (Th-3) thermistor for the '9 Series' cooling units
General
SB-22302133-03 Daikin Over Current Relay
Daikin
Over current relay for the Daikin '9 series' cooling units
SB-Y4453074-05 Daikin Filter Mesh
Daikin
Filter mesh for the Daikin '8 series' and '9 series' cooling units
Special
SB-HP20319 Daikin 9 Series Oil Level Gauge
Daikin
Oil level gauge for the Daikin 'AKZ8' series cooling units
SB-HP30995 Daikin 9 Series Air Breather
Daikin
Air breather for the Daikin 'AKZ8' series cooling units
