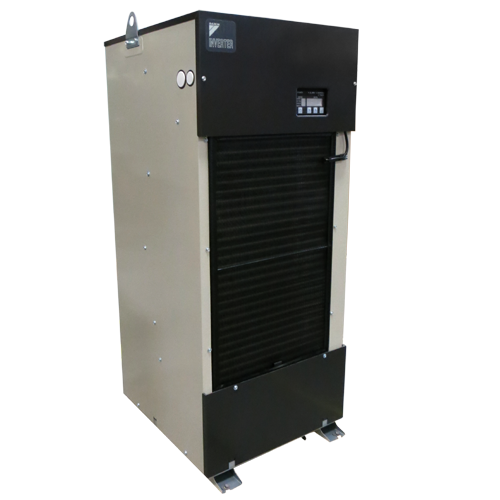

AKZ569D187 Daikin Oil Cooling Unit

Delivery: Options Available

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: AKZ569D187

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".



The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 1.4~200 (ISO VG2~32).



The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.



The connection piping fitting sizes are as follows:

Oil Inlet: Rc1 1/4

Oil Outlet: Rc1 1/4

Oil Drain: Rc1/4 (Plug Stopper)

Cooling Capacity (kW) 5.0/5.6
Power Supply AC 3-phase 200/220V 50/60Hz
Height 1110mm
Width 470mm
Depth 560mm
Compressor Equivalent to 1.5kW
Refrigerant R410A
Pump Discharge (L/min) 30/36
Noise 65dB(A)
Weight (kg) 82

Downloads

Compressor

SB-2YC36EXD Daikin Compressor

SB-2YC36EXD Daikin Compressor

Daikin

Compressor for the Daikin '9 Series' cooling units

SB-3PC01011-3 Daikin Vibration Mount Isolator (set of 3)

Daikin

Vibration mount isolators for the compressors on the Daikin '9 series' cooling units.

SB-4P006940-1 Daikin Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

SB-22301854-01 Daikin Expansion Valve Body

SB-22301854-01 Daikin Expansion Valve Body

Daikin

This Daikin expansion valve body is fitted on a range of 9 series cooling units

SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil

SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil

Daikin

Hot gas bypass expansion valve coil for the Daikin '9 series' cooling units.

SBAKZ-016 Daikin Expansion Valve Coil

SBAKZ-016 Daikin Expansion Valve Coil

Daikin

This Daikin expansion valve coil is fitted on a range of 9 series cooling units

SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover

SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover

Daikin

This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.

SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter

SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

SB-1936172-1 Daikin 9 Series Expansion Valve Body

SB-1936172-1 Daikin 9 Series Expansion Valve Body

Daikin

Expansion valve body for the Daikin cooling units

Pump and Motors

SB-2P119330-1 Daikin Fan Blade

Daikin

Fan blade that attaches to the SBAKZ-017 fan motor on the Daikin cooling units.

SBAKZ-020 Daikin Pump and Motor Assembly

Daikin

Pump and motor assembly for the Daikin '9 series' cooling units.

SB-PP03088-01 Daikin Vibration Mount Isolators (set of 4)

Daikin

Vibration mount isolators for the pump and motor assemblies on the Daikin cooling units.

SBAKZ-017 Daikin Fan Motor

SBAKZ-017 Daikin Fan Motor

Daikin

This Daikin fan motor is fitted on a range of the 9 series cooling units.

Control Boards

AKZ9-OP-CS4 Daikin Communication Board

Daikin

Communication board for the Daikin '9 series' cooling units.

SB-22201638-01 Daikin Inverter Board

SB-22201638-01 Daikin Inverter Board

Daikin

Inverter board for the '9 series' cooling units.

SB-22302414-01 Daikin Control Panel Assembly

Daikin

Control panel assembly for the '9 series' cooling units.

SB-22301860-01 Daikin Noise Filter Board

SB-22301860-01 Daikin Noise Filter Board

Daikin

This Daikin noise filter board is fitted on the majority of the 9 series cooling units.

SB-PP02858-004S Daikin Main Control Board

SB-PP02858-004S Daikin Main Control Board

Daikin

This Daikin main control board is fitted to the 9 series cooling units.

Thermistors

AKZ9-OP-A5 Daikin Attached Machine Body Thermistor (Th-1)

AKZ9-OP-A5 Daikin Attached Machine Body Thermistor (Th-1)

Daikin

Attached machine body thermistor for the Daikin '9 series' cooling units

AKZ9-OP-K5 Daikin Embedded Attached Machine Body Thermistor (Th-1)

AKZ9-OP-K5 Daikin Embedded Attached Machine Body Thermistor (Th-1)

Daikin

Embedded machine body thermistor for the Daikin '9 series' cooling units

AKZ9-OP-Y10 Return Oil Thermistor (Th-9)

AKZ9-OP-Y10 Return Oil Thermistor (Th-9)

Daikin

Return oil thermistor for the Daikin '9 series' cooling units

SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)

SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)

Daikin

This Daikin discharge gas temperature themistor is fitted to a range 9 series cooling units.

SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)

SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)

Daikin

This Daikin expansion valve outlet temperature themistor is fitted to a range 9 series cooling units.

SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)

SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)

Daikin

This Daikin condensation temperature themistor is fitted to a range 9 series cooling units.

SB-22301677-04 Daikin Inlet Oil Temperature Thermistor (Th-4)

SB-22301677-04 Daikin Inlet Oil Temperature Thermistor (Th-4)

Daikin

This Daikin inlet oil temperature themistor is fitted to a range 9 series cooling units.

SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)

SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)

Daikin

Air (Room) temperature (Th-3) thermistor for the '9 Series' cooling units

General

SB-22201599-01 Daikin Condenser

Daikin

Condenser for the Daikin '9 series' cooling units.

SB-22302133-03 Daikin Over Current Relay

Daikin

Over current relay for the Daikin '9 series' cooling units

SB-22302771-01 Daikin Evaporator

Daikin

Evaporator for the Daikin '9 series' cooling units.

SB-Y4453074-04 Daikin Filter Mesh

Daikin

Filter mesh for the Daikin '8 series' and '9 series' cooling units

Special

SBAKZ-007 Daikin Pressure Switch

Daikin

Pressure switch for the Daikin 'AKZ9' series cooling units

SB-HP31360-2 9 Series Breaker

Daikin

Breaker for the Daikin 'AKZ9' series cooling units

SB-22301781-01 Daikin 9 Series Thermostat

Daikin

Thermostat for the Daikin 'AKZ9' series cooling units
