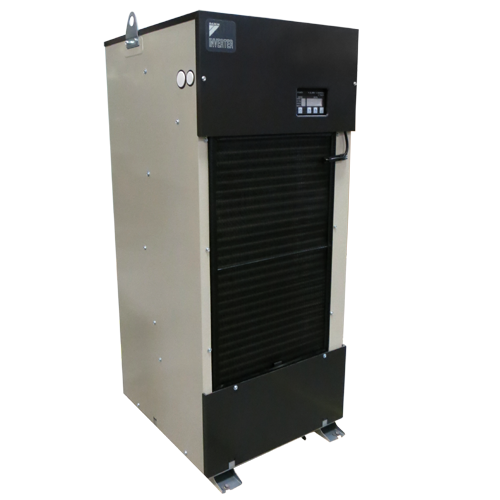

AKZ569-T Daikin Oil Cooling Unit

Delivery: Options Available

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: AKZ569-T

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".



The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 1.4~200 (ISO VG2~32).



The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.



The connection piping fitting sizes are as follows:

Oil Inlet: Rc1 1/4

Oil Outlet: Rc1 1/4

Oil Drain: Rc1/4 (Plug Stopper)

Cooling Capacity (kW) 5.0/5.6
Power Supply AC 3-phase 200/220V 50/60Hz
Height 1110mm
Width 470mm
Depth 560mm
Compressor Equivalent to 1.5kW
Refrigerant R410A
Pump Discharge (L/min) 30/36
Noise 65dB(A)
Weight (kg) 82
