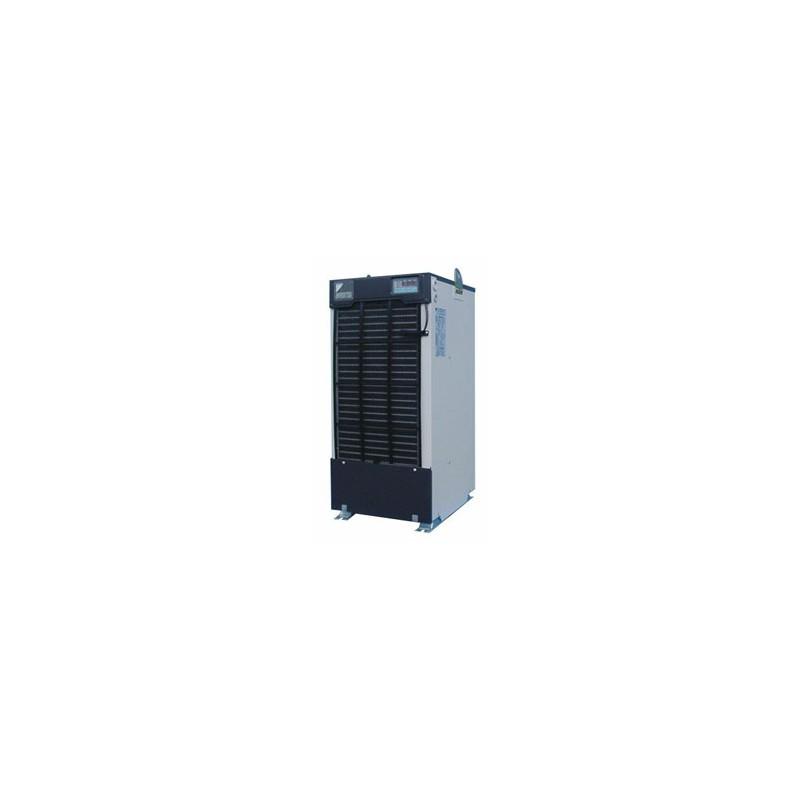

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 1.4~200 (ISO VG2~32).
The room temperature operating range is between 5~45°C and the inlet oil temperature operating range is 5~50°C.
The connection piping fitting sizes are as follows:
Oil Inlet: Rc1 1/4
Oil Outlet: Rc1 1/4
Oil Drain: Rc1/4 (Plug Stopper)
|Cooling Capacity (kW)||5.0/5.6|
|Power Supply||AC 3-phase 200/220V 50/60Hz|
|Compressor||Equivalent to 1.5kW|
|Pump Discharge (L/min)||30/36|
SB-1936172-1 Daikin 8 Series Expansion Valve Body
Expansion valve body for the Daikin cooling units
SB-1YC32AXD Daikin Compressor
Compressor for the Daikin '8 Series' cooling units
SB-22200923-01 Daikin Hot Gas Bypass Expansion Valve Coil
Hot gas bypass expansion valve coil for the Daikin cooling units.
SB-1936195-1 Daikin Expansion Valve Coil
This Daikin expansion valve coil is fitted on a range of 8 series cooling units
SB-3SA52068-1 Daikin Expansion Valve Body
Hot gas bypass expansion valve body for the Daikin cooling units
SB-3PB39152-2 Daikin Vibration Mount Isolator (set of 3)
These Daikin compressor vibration mount isolators are fitted underneath the compressor on a wide range of the 8 and 9 series cooling units.
SB-4P012568-2 Daikin 8 Series Expansion Valve Refrigerant Filter
Expansion valve refrigerant filter for the Daikin cooling units.
SB-3PD03148-1 Daikin 8 Series Compressor Terminal Cover
This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.
Pump and Motors
SB-PP02967-01 Daikin Fan Blade
Fan blade for the Daikin '8 series' cooling units.
SB-SP1369 Daikin Vibration Mount Isolators (set of 4)
Vibration mount isolators for the pump and motor assemblies on the Daikin cooling units.
SB-1936073-1 Daikin Fan Motor
This Daikin fan motor is fitted on a wide range of the 8 series cooling units.
SB-1936175-1 Daikin Control Panel Assembly
This Daikin control panel assembly is fitted to the majority of 8 series cooling units.
SB-Y4252598-1 Daikin Inverter Board
Inverter board for the Daikin '8 series' cooling units.
SB-PP00365-168S Daikin Main Control Board
This Daikin main control board is fitted to the 8 series cooling units.
AKZ8-OP-A10 Daikin Attached Machine Body Thermistor (Th-5)
Attached machine body thermistor for the Daikin '8 series' cooling units
AKZ8-OP-K10 Daikin Embedded Attached Machine Body Thermistor (Th-5)
Embedded machine body thermistor for the Daikin '8 series' cooling units
SB-Y4353007-1 Liquid Inlet Thermistor (Th-4)
Liquid inlet thermistor for the Daikin '8 series' cooling units
SB-Y4453121-2 Daikin Air (Room) Temperature Thermistor (Th-3)
Air (Room) temperature (Th-3) thermistor for the '8 Series' cooling units
SB-Y4353007-2 Liquid Outlet Thermistor (Th-2)
This Daikin liquid outlet thermistor is fitted to a range of 8 series cooling units
SB-Y4453125-1 Daikin Thermistor Assembly (Th-6,7,8)
This Daikin thermistor assembly is fitted to a range of 8 series cooling units
SB-Y4252481-2 Daikin Evaporator
Evaporator for the Daikin 'AKZ568 Series' cooling units
SB-Y4252547-1 Daikin Condenser
Condenser for the Daikin '8 Series' cooling units
SB-Y4352900-2 Daikin Over Current Relay
Over current relay for the Daikin '8 series' cooling units.
SB-Y4453074-1 Daikin Filter Mesh
Filter mesh for the Daikin '8 series' and '9 series' cooling units
Thermostat for the Daikin 'AKZ8' series cooling units
SB-1936204-1 Daikin Pressure Switch
Pressure Switch for the Daikin '8 series' cooling units.
