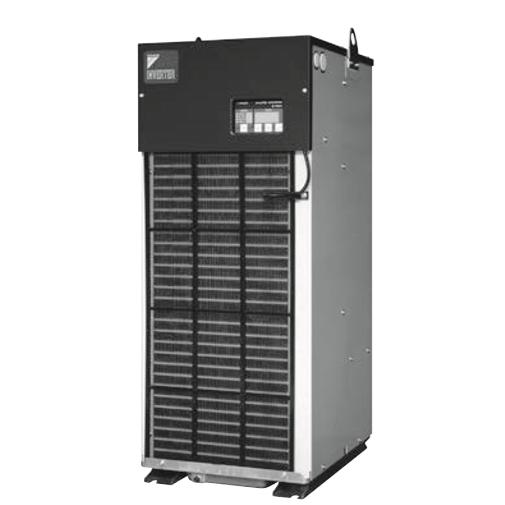

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".
The usable oils for this cooling unit is fresh water (tap water).
The room temperature operating range is between 10~40°C and the tank fluid operating range is 10~40°C.
Cooling Capacity (kW) | 5.6/5.6 |
Power Supply | AC 3-phase 200/220V 50/60Hz |
Height | 1197mm |
Width | 470mm |
Depth | 500mm |
Compressor | Equivalent to 1.5kW |
Refrigerant | R410A |
Pump Discharge (L/min) | 30 |
Noise | 65dB(A) |
Weight (kg) | 90 |
Downloads
Brochure
Compressor
SB-3PC01011-3 Daikin Vibration Mount Isolator (set of 3)
Daikin
Vibration mount isolators for the compressors on the Daikin '9 series' cooling units.
SB-4P006940-1 Daikin Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-22301854-01 Daikin Expansion Valve Body
Daikin
This Daikin expansion valve body is fitted on a range of 9 series cooling units
SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil
Daikin
Hot gas bypass expansion valve coil for the Daikin '9 series' cooling units.
SBAKZ-016 Daikin Expansion Valve Coil
Daikin
This Daikin expansion valve coil is fitted on a range of 9 series cooling units
SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover
Daikin
This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.
SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter
Daikin
Expansion valve refrigerant filter for the Daikin cooling units.
SB-1936172-1 Daikin 9 Series Expansion Valve Body
Daikin
Expansion valve body for the Daikin cooling units
Pump and Motors
SB-22303249-01 Daikin Pump and Motor Assembly
Daikin
Pump and motor assembly for the Daikin '9 series' cooling units.
SB-2P119330-1 Daikin Fan Blade
Daikin
Fan blade that attaches to the SBAKZ-017 fan motor on the Daikin cooling units.
SBAKZ-017 Daikin Fan Motor
Daikin
This Daikin fan motor is fitted on a range of the 9 series cooling units.
Control Boards
SB-22301816-01 Daikin Control Panel Assembly
Daikin
Control panel assembly for the '9 series' cooling units.
SB-PP02858-209S Daikin Main Control Board
Daikin
Main control board for the Daikin 'AKW569' cooling unit.
SB-22301860-01 Daikin Noise Filter Board
Daikin
This Daikin noise filter board is fitted on the majority of the 9 series cooling units.
Thermistors
SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)
Daikin
This Daikin discharge gas temperature themistor is fitted to a range 9 series cooling units.
SB-22302246-02 Suction Gas Thermistor (Th-4)
Daikin
Suction gas thermistor for the Daikin '9 series' cooling units.
SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)
Daikin
This Daikin expansion valve outlet temperature themistor is fitted to a range 9 series cooling units.
SB-22303054-01 Inlet Liquid Temperature Thermistor (Th-4)
Daikin
Inlet liquid temperature thermistor (Th-4) for the Daikin '9 series' cooling units.
SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)
Daikin
This Daikin condensation temperature themistor is fitted to a range 9 series cooling units.
SB-22301677-05 Daikin Outlet Oil Temperature Thermistor (Th-2)
Daikin
This Daikin outlet oil temperature themistor is fitted to a range 9 series cooling units.
SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)
Daikin
Air (Room) temperature (Th-3) thermistor for the '9 Series' cooling units
General
SB-Y4453074-04 Daikin Filter Mesh
Daikin
Filter mesh for the Daikin '8 series' and '9 series' cooling units
