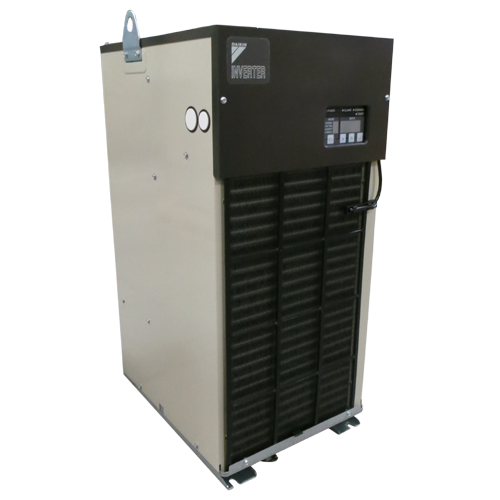

AKW459-D273A Daikin Water Cooling Unit

Delivery: Options Available

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: AKW459-D273A

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".



The usable oils for this cooling unit is fresh water (tap water).



The room temperature operating range is between 10~40°C and the tank fluid operating range is 10~40°C.



Cooling Capacity (kW) 4.5/4.5
Power Supply AC 3-phase 200/220V 50/60Hz
Height 875mm
Width 360mm
Depth 440mm
Compressor Equivalent to 1.1kW
Refrigerant R410A
Noise 62dB(A)
Weight (kg) 43

Downloads

Compressor

SB-1YC23AEXD Daikin Compressor

SB-1YC23AEXD Daikin Compressor

Daikin

Compressor for the Daikin '9 Series' cooling units

SB-22301852-01 Daikin Expansion Valve Body

Daikin

Expansion valve body for the Daikin '9 series' cooling units.

SB-22400963-01 Daikin Vibration Mount Isolator (set of 3)

Daikin

Vibration mount isolators for the compressors on the Daikin '9 series' cooling units.

SB-4P006940-1 Daikin Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil

SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil

Daikin

Hot gas bypass expansion valve coil for the Daikin '9 series' cooling units.

SB-22301854-01 Daikin Expansion Valve Body

SB-22301854-01 Daikin Expansion Valve Body

Daikin

This Daikin expansion valve body is fitted on a range of 9 series cooling units

SBAKZ-004 Daikin Expansion Valve Coil

SBAKZ-004 Daikin Expansion Valve Coil

Daikin

Expansion valve coil for the Daikin '9 series' cooling units.

SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover

SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover

Daikin

This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.

SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter

SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

Pump and Motors

SB-1915112-1 Daikin 8 Series Fan Blade

SB-1915112-1 Daikin 8 Series Fan Blade

Daikin

This Daikin fan blade is fitted on a range of 8 series cooling units

SBAKZ-006 Daikin Fan Motor

SBAKZ-006 Daikin Fan Motor

Daikin

This Daikin fan motor is fitted on a range of the 9 series cooling units.

SB-1915112-1 Daikin 9 Series Fan Blade

SB-1915112-1 Daikin 9 Series Fan Blade

Daikin

This Daikin fan blade is fitted on a range of 8 series cooling units

Control Boards

SB-22201447-04 Daikin Inverter Board

Daikin

Inverter board for the '9 series' cooling units.

SB-22301816-01 Daikin Control Panel Assembly

SB-22301816-01 Daikin Control Panel Assembly

Daikin

Control panel assembly for the '9 series' cooling units.

SB-PP02858-203S Daikin Main Control Board

SB-PP02858-203S Daikin Main Control Board

Daikin

Main control board for the Daikin 'AKW459' cooling unit.

SB-22301860-01 Daikin Noise Filter Board

SB-22301860-01 Daikin Noise Filter Board

Daikin

This Daikin noise filter board is fitted on the majority of the 9 series cooling units.

Thermistors

AKZ9-OP-A10 Daikin Attached Machine Body Thermistor (Th-1)

AKZ9-OP-A10 Daikin Attached Machine Body Thermistor (Th-1)

Daikin

Attached machine body thermistor for the Daikin '9 series' cooling units

AKZ9-OP-K10 Daikin Embedded Attached Machine Body Thermistor (Th-1)

AKZ9-OP-K10 Daikin Embedded Attached Machine Body Thermistor (Th-1)

Daikin

Embedded machine body thermistor for the Daikin '9 series' cooling units

SB-22302246-01 Evaporator Outlet Water Thermistor (Th-4)

Daikin

Evaporator outlet water thermistor for the Daikin '9 series' cooling units.

SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)

SB-22301677-01 Daikin Discharge Gas Temperature Thermistor (Th-6)

Daikin

This Daikin discharge gas temperature themistor is fitted to a range 9 series cooling units.

SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)

SB-22301677-02 Daikin Expansion Valve Outlet Temperature Thermistor (Th-8)

Daikin

This Daikin expansion valve outlet temperature themistor is fitted to a range 9 series cooling units.

SB-22302246-02 Suction Gas Thermistor (Th-4)

Daikin

Suction gas thermistor for the Daikin '9 series' cooling units.

SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)

SB-22301677-03 Daikin Condensation Temperature Thermistor (Th-7)

Daikin

This Daikin condensation temperature themistor is fitted to a range 9 series cooling units.

SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)

SB-Y4453121-1 Daikin 9 Series Air (Room) Temperature Thermistor (Th-3)

Daikin

Air (Room) temperature (Th-3) thermistor for the '9 Series' cooling units

General

SB-22301613-01 Daikin Condenser

SB-22301613-01 Daikin Condenser

Daikin

Condenser for the Daikin '9 series' cooling units.

SB-22301828-01 Daikin Filter Mesh

Daikin

Filter mesh for the Daikin '8 series' and '9 series' cooling units

SB-22301869-02 Daikin Over Current Relay

SB-22301869-02 Daikin Over Current Relay

Daikin

Over current relay for the Daikin '9 series' cooling units

SB-22302391-03 Daikin Evaporator

Daikin

Evaporator for the Daikin '9 series' cooling units.

Special

SB-22301781-02 Daikin Thermostat

Daikin

Thermostat for the Daikin 'AKZ9' series cooling units

SBAKZ-007 Daikin Pressure Switch

Daikin

Pressure switch for the Daikin 'AKZ9' series cooling units

SB-HP3123435 Daikin 9 Series Castors

Daikin

Castors for the Daikin '9 Series' cooling units

SB-HP31360-1 9 Series Breaker

Daikin

Breaker for the Daikin 'AKZ9' series cooling units
