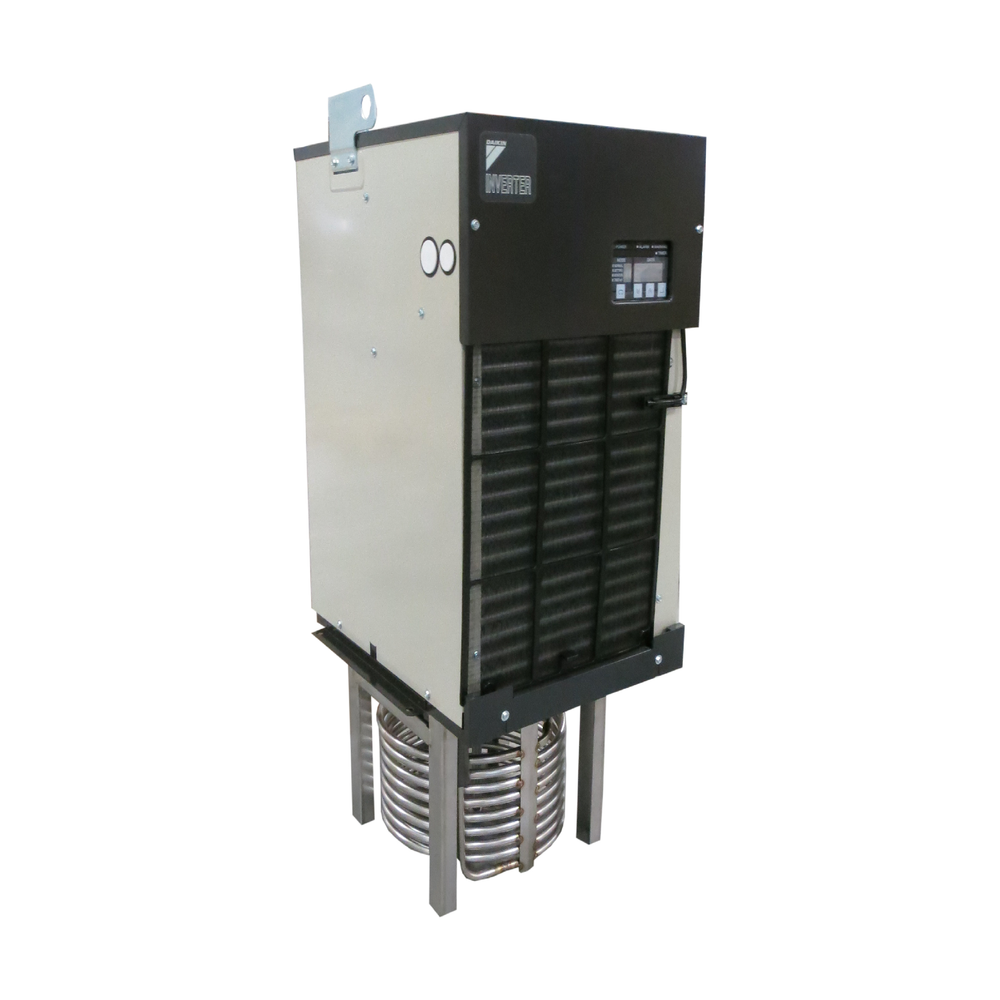

AKJ359-046 Daikin Coolant Cooling Unit

Delivery: Options Available

For any enquiry or technical support,
please contact us on 0116 478 4200

Contact Us
Part Number: AKJ359-046

High-accuracy temperature control and first class energy saving by fusing "Hydraulic Technology" and "Inverter Technology".



The usable oils for this circulation type cooling unit are lubricating oil and mineral oil based hydraulic fluid.The viscosity range of the oil is 0.5~200mm2/s.



The room temperature operating range is between 5~45°C and the tank fluid operating range is 5~50°C.



Cooling Capacity (kW) 3.2/3.5
Power Supply AC 3-phase 200/220V 50/60Hz
Height 1045mm
Width 360mm
Depth 440mm
Compressor Equivalent to 0.75kW
Refrigerant R410A
Noise 62dB(A)
Weight (kg) 44

Downloads

Compressor

SB-1YC20EXD Daikin Compressor

SB-1YC20EXD Daikin Compressor

Daikin

Compressor for the Daikin '9 Series' cooling units

SB-22400963-01 Daikin Vibration Mount Isolator (set of 3)

Daikin

Vibration mount isolators for the compressors on the Daikin '9 series' cooling units.

SB-4P006940-1 Daikin Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

SB-22301854-01 Daikin Expansion Valve Body

SB-22301854-01 Daikin Expansion Valve Body

Daikin

This Daikin expansion valve body is fitted on a range of 9 series cooling units

SB-22301926-01 Daikin Expansion Valve Body

SB-22301926-01 Daikin Expansion Valve Body

Daikin

This Daikin expansion valve body is fitted on a range of 9 series cooling units

SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil

SBAKZ-003 Daikin Hot Gas Bypass Expansion Valve Coil

Daikin

Hot gas bypass expansion valve coil for the Daikin '9 series' cooling units.

SBAKZ-016 Daikin Expansion Valve Coil

SBAKZ-016 Daikin Expansion Valve Coil

Daikin

This Daikin expansion valve coil is fitted on a range of 9 series cooling units

SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover

SB-3PD03148-1 Daikin 9 Series Compressor Terminal Cover

Daikin

This Daikin compressor terminal cover is fitted to the majority of 8 series cooling units.

SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter

SB-4P012568-2 Daikin 9 Series Expansion Valve Refrigerant Filter

Daikin

Expansion valve refrigerant filter for the Daikin cooling units.

Pump and Motors

SB-22201235-01 Daikin Fan Blade

Daikin

Fan blade that attaches to the SBAKZ-005 and SBAKZ-006 fan motor on the Daikin cooling units.

SB-22401517-01 Daikin Agitator Plate

Daikin

Agitator plate for the Daikin '9 series' cooling units

SBAKJ-006 Daikin Agitator Motor

Daikin

Agitator motor for the Daikin '9 series' cooling units.

SBAKZ-006 Daikin Fan Motor

SBAKZ-006 Daikin Fan Motor

Daikin

This Daikin fan motor is fitted on a range of the 9 series cooling units.

Control Boards

SB-22201447-04 Daikin Inverter Board

Daikin

Inverter board for the '9 series' cooling units.

SB-22301816-01 Daikin Control Panel Assembly

SB-22301816-01 Daikin Control Panel Assembly

Daikin

Control panel assembly for the '9 series' cooling units.

SB-PP02858-007S Daikin Main Control Board

SB-PP02858-007S Daikin Main Control Board

Daikin

Main control board for the Daikin 'AKJ359' cooling unit.

SB-22301860-01 Daikin Noise Filter Board

SB-22301860-01 Daikin Noise Filter Board

Daikin

This Daikin noise filter board is fitted on the majority of the 9 series cooling units.

Thermistors

SB-22303052-01 Air (Room) Temperature Thermistor (Th-3)

Daikin

Air (room) temperature thermistor (Th-3) for the Daikin '9 series' cooling units.

SB-22303053-01 Discharge Gas Temperature Thermistor (Th-6)

SB-22303053-01 Discharge Gas Temperature Thermistor (Th-6)

Daikin

Discharge gas temperature thermistor for the Daikin '9 series' cooling units.

SB-22303053-02 Expansion Valve Outlet Temperature Thermistor (Th-8)

SB-22303053-02 Expansion Valve Outlet Temperature Thermistor (Th-8)

Daikin

Expansion valve outlet temperature thermistor for the Daikin '9 series' cooling units.

SB-22303053-03 Condensation Temperature Thermistor (Th-7)

SB-22303053-03 Condensation Temperature Thermistor (Th-7)

Daikin

Condensation temperature thermistor for the Daikin '9 series' cooling units.

SB-22303053-04 Suction Gas Thermistor (Th-4)

SB-22303053-04 Suction Gas Thermistor (Th-4)

Daikin

Suction gas thermistor for the Daikin '9 series' cooling units.

SB-22303054-01 Inlet Liquid Temperature Thermistor (Th-4)

Daikin

Inlet liquid temperature thermistor (Th-4) for the Daikin '9 series' cooling units.

General

SB-22301612-01 Daikin Condenser

Daikin

Condenser for the Daikin '9 series' cooling units.

SB-1936142-2 Daikin Series 9 Air Filter Mesh

SB-1936142-2 Daikin Series 9 Air Filter Mesh

Daikin

This Daikin filter mesh is fitted to the AKZ329 and AKJ359 cooling units
